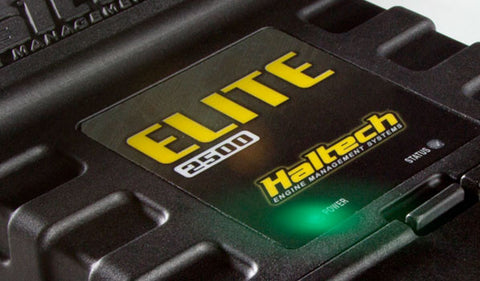

Haltech Elite 2500 ECU

  • Sale
  • Regular price $ 1,995.00

BennettBuilt is proud to offer the latest and greatest from Haltech engine management, the Haltech Elite 2500 series.

We offer this Ecu in 3 packages,

  • Elite 2500 (DBW) – ECU Only (includes USB Software Key and USB programming cable)
  • Elite 2500 (DBW) – 1.2m (4 ft) Basic Universal Wiring Harness Kit (no relays or fuses) – (includes USB Software Key and USB programming cable)
  • Elite 2500 (DBW) – 2.5m (8 ft) Premium Universal Wiring Harness Kit – with firewall grommet, molded 6 power circuit Haltech fuse box & lid. Includes 4 relays & 7 fuses. – (includes USB Software Key and USB programming cable)

We can also sell the ecu with a patch harness from the platinum series 1000 / 2000 to make a plug and play setup. This means the new Elite series can be a plug and play option out of the box !

The new Haltech Elite Series ECUs take the art of engine management to a brand new level. With a brand new, waterproof case, drive-by-wire, exhaust cam and knock control the Elite Series ECUs provide cutting edge technology to tuners and performance enthusiasts world-wide.


Elite 2500 ECU Features:

Waterproof Case
• 8 x Fuel Injection Outputs
• 8 x Ignition Outputs
• 28 x Digital Outputs
• 10 x Analogue Voltage Inputs
• 6 x Engine Position Inputs with extensive trigger type support
• Programmable Injector Peak and Hold Currents
• OBDII Capable – set and clear diagnostics trouble codes
• USB laptop communications

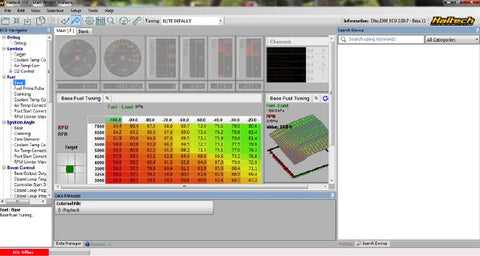

• New “ESP” calibration software – More intuitive and easier to use than ever
• Dual CAN Bus communications for OEM and Haltech CAN expansion
• User definable 5D Tuning – Tune by Gear, Cam Angle or any channel for ultimate tuning flexibility
• Drive By Wire (DBW) Throttle Control
• Variable Cam Control – Independently Control up to 4 camshafts
• Dual Channel Knock Control – With FFT analysis for accurate detection
• Auto Tune Capabilities – Short and Long term fuel, ignition & boost learning
• Staged Fuelling – Up to four stages of injectors
• Multi-fuel Support- Support for Petrol (Gasoline), Methanol and Ethanol
• E85 Flex Fuel Ready – With additional boost tables
• Closed Loop Boost Control – Multiple Modes – Tune by gear, wheel speed or time
• Closed Loop Idle Control – With learning for consistent idle stability
• Closed Loop 02 Control – Dual bank control for precise tuning
• Anti-Lag and Launch Control – Drag and Rally modes
• Data logging – Internal memory & external laptop logging
• Multi Level Engine Protection – Set limits for sensors and protect your engine
• ECU comes fully enabled, no additional charges for advanced features
• Free firmware upgrades – New features continually being added
